Nuralite's system components build the complete solution. Use in combination with our membranes to have a fully warranted system and confidence in product performance.

View Technical Documents

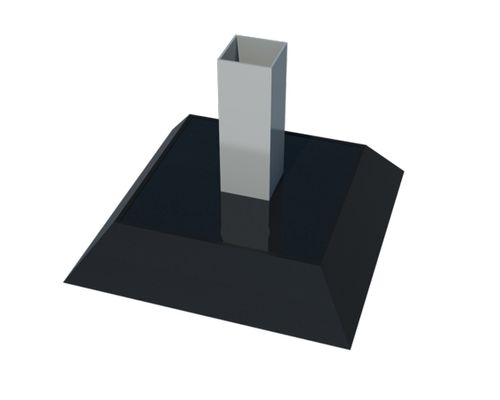

Lockin' Pocket
Lockin' Pocket
Pre-fabricated inter-locking pocket that is easily assembled on-site and filled with fast setting sealer. It is comprised of high strength, flexible elastomer, which becomes watertight within minutes of application. Allows difficult penetrations in the membrane to become waterproof fast.

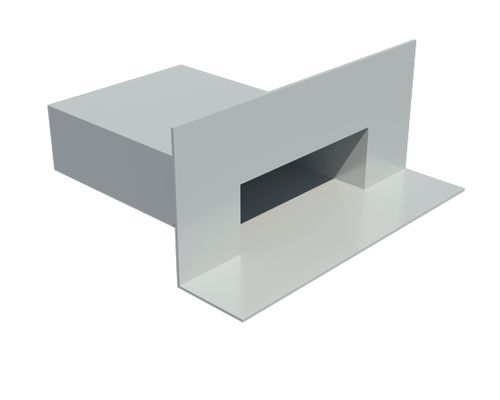

Scuppers
Scuppers
Scuppers are used to direct rainwater through a parapet. Factory welded in solid aluminium for maximum durability. Available in NZBC E2 compliant 75mm (H) x 200mm (W) OR custom fabricated to meet your needs.
PIR Insulation Board
PIR Insulation Board

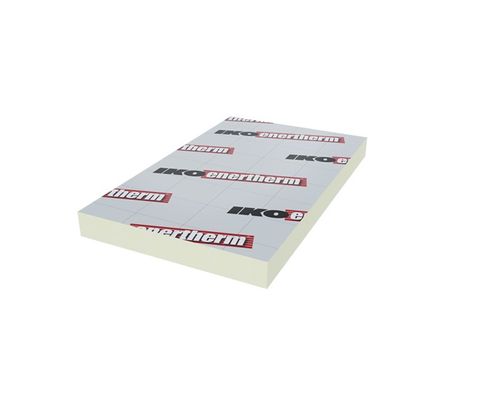

Enertherm is a top quality PIR (polyisocyanurate) insulation board. It offers outstanding insulating properties (0.022w/mk), excellent fire performance & superior compressive strength. Range of thicknesses available to meet your R-Value requirements, including tapered options.
Nuratrim
Nuratrim

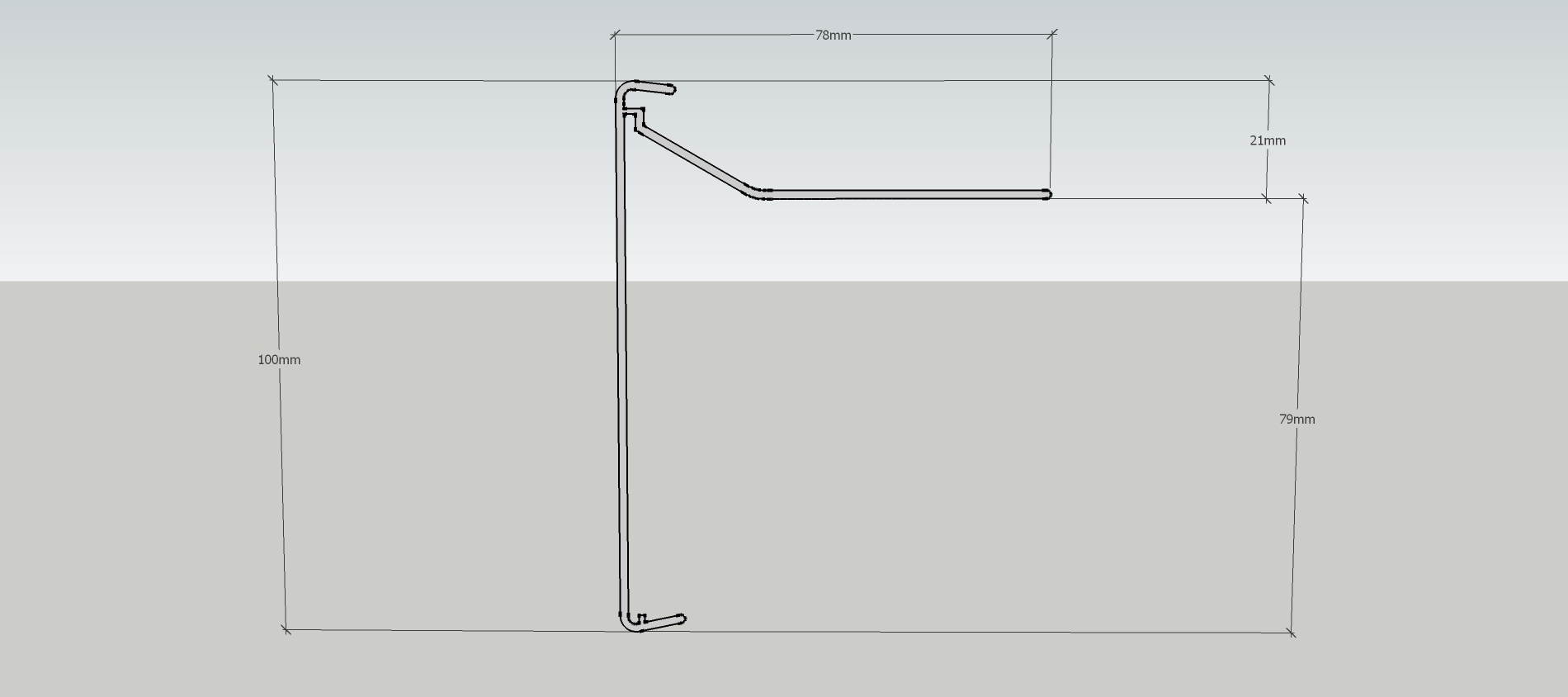

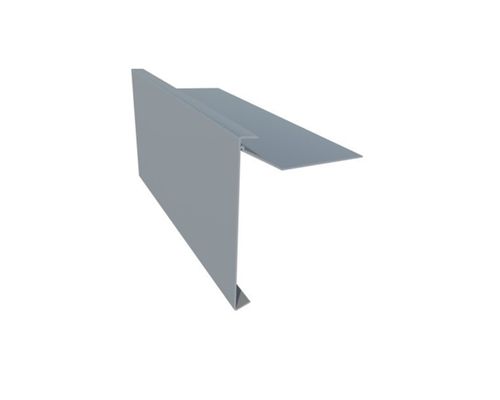

Nuratrim is an aluminium edge system, purpose designed for the Nuraply 3PM roofing membrane. It provides excellent protection from dynamic wind situations, leaving a crisp & flat vertical face on parapets & roof verges. 100mm (H) x 80mm (W), in standard 3m lengths.

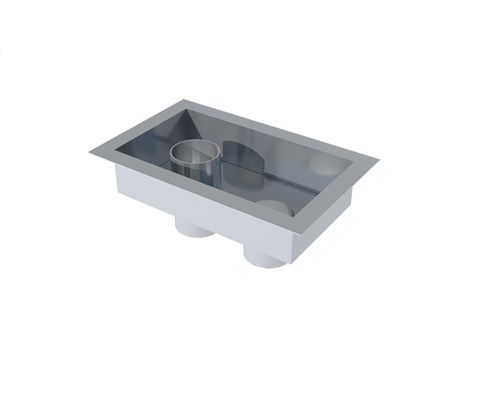

Sumps
Sumps
Nuraply 3PM compatible aluminium sumps create a low point with both an outlet and an overflow. Sizes can be custom fabricated to meet your needs. Standard sizes: 80mm Diameter: 340mm (L) x 250mm (W) x 80mm (H) OR 100mm diameter: 400mm (L) x 250mm (W) x 200mm (H)
Nuravent
Nuravent
Nuravents are recommended in cold roofs to allow ventilation of the roof cavity. They are made from a single piece of spun aluminium and can be powder coated to suit your colour requirements. 160mm (H) x 130 mm dome (D) x 100mm internal (D).
Nuraswell
Nuraswell

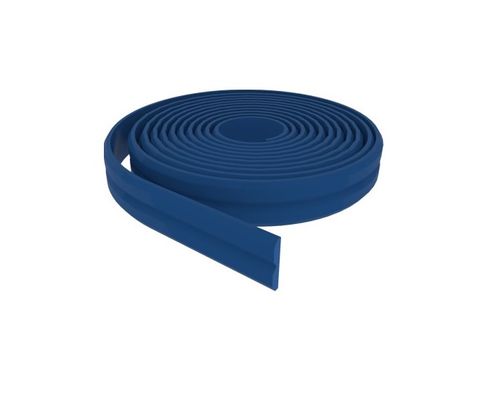

Nuraswell is a hydrophilic waterstop used for waterproofing of construction joints. Typical applications include joints between different concrete pours, pipe penetrations & wall to slab joints.
Termination Bar
Termination Bar

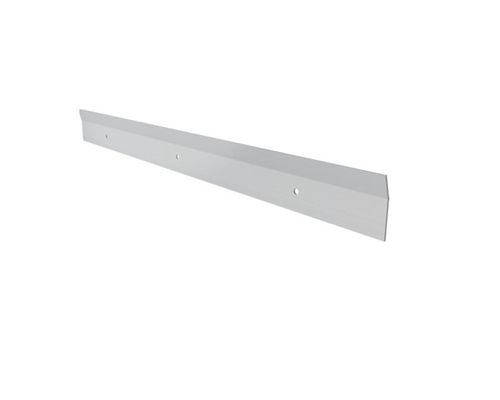

The Nuralite Termination Bar holds the top edge of the membrane in position against the vertical substrate. Its shape allows for sealant to be applied as an additional weather protector to maximise durability.
Kick Out Divertor
Kick Out Divertor

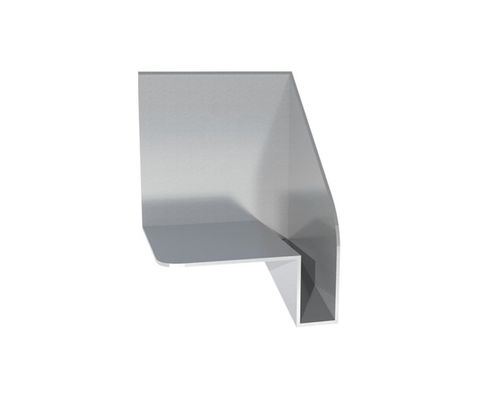

The Nuralite Kick Out Diverter is an aluminium end flashing that diverts water into the gutter at wall & roof junctions. It creates a downward & outward waterflow off the roof & away from the wall. 100mm (L) x 90mm (W) x 140mm (H).

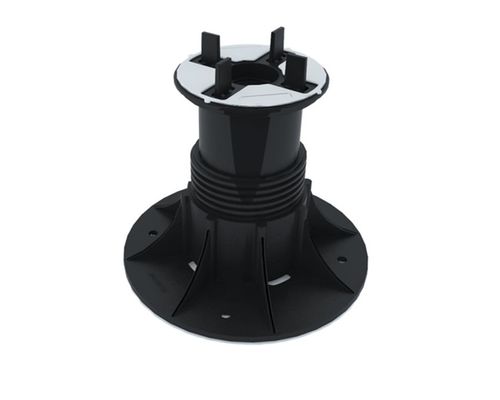

Nurajack
Nurajack
The Nurajack pedestal is an adjustable, self-levelling jack for floating tile & timber deck surfaces over membrane roofs, allowing access for maintenance. Adjustable height: 28mm - 550mm (H).
Nuralite Fixing Plate
Nuralite Fixing Plate
The Nuralite Fixing Plate is supplied as a factory assembled unit pre-fitted with the Nuraply 3PM System. It provides a universal fixing point offering two M10 x 20 female threaded anchor points for supporting and securing most types of rails and bars. Suitable for installing general roof plant, pipework and solar panels.

Product Benefits

  • All accessories are compatable with Nuraply membrane
  • Warrantied as part of Nuralite system.
  • Can be colour matched with membrane.
Components used on Cold Roof
Nuravents on Townhouses

Nuravents on Townhouses

Nuravents and Solar Panels on Roof

Nuravents and Solar Panels on Roof

Roof accessories on Piha House

Roof accessories on Piha House

Nuratrim on Wellington Home

Nuratrim on Wellington Home

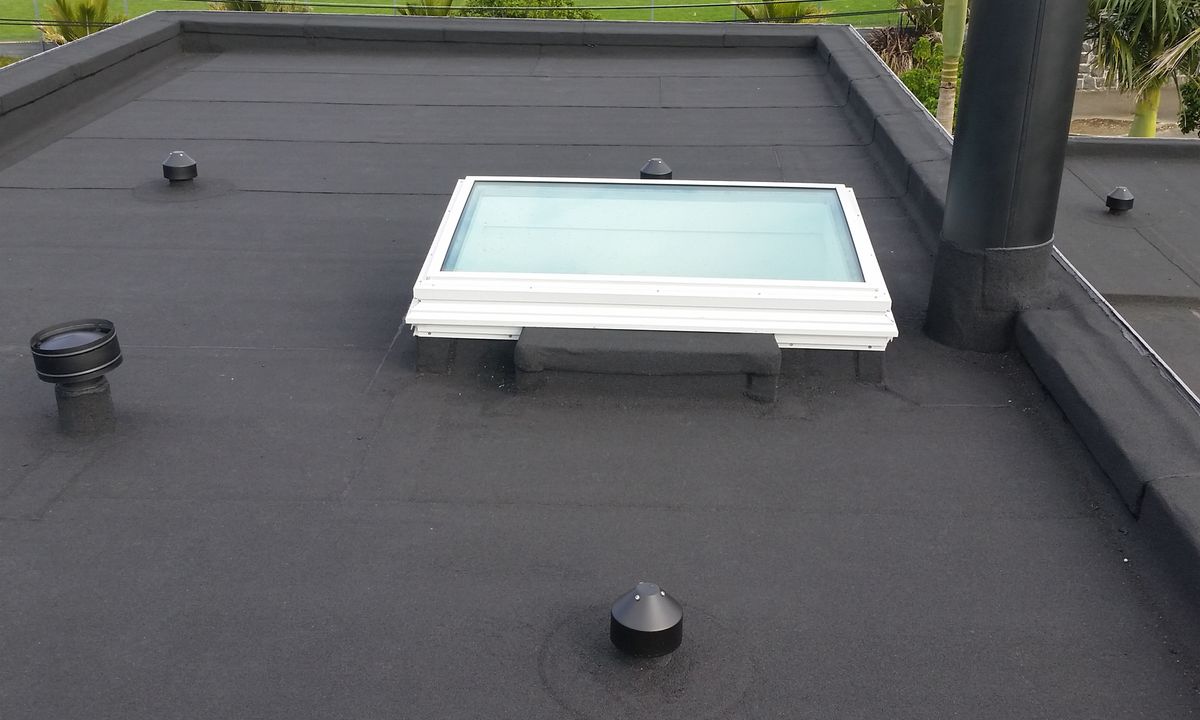

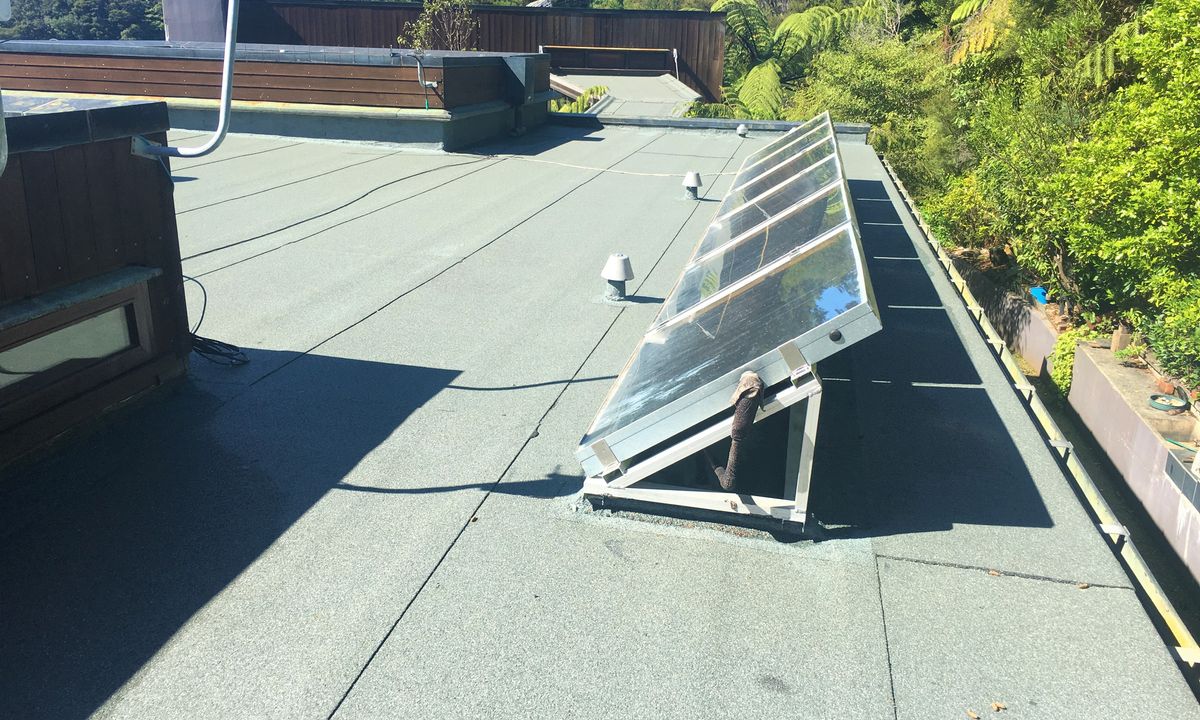

Nuraply 3PM with Nuravents and Skylight

Nuraply 3PM with Nuravents and Skylight

Need a Flat Roof Design Guide? Get It Now
