Perfect for insulating any structure - roofs, walls or basements. Ideally used outside the building structure to continuously wrap the building with insulation.

CodeMark Certificate View Technical Documents

Where is Enertherm PIR Insulation used?

Where is Enertherm PIR Insulation used?

Enertherm is used for the insulation of all building surfaces. For flat roofs Enertherm is certified for new construction or refurbishment projects on concrete, steel deck or timber substrate.

prev next
What is the make up of Enertherm?

What is the make up of Enertherm?

This high-quality reflecting ALU cladding consists of no fewer than seven layers, combined into a single board. The rigid polyisocyanurate foam core is clad on both sides with a multi-layer gastight aluminium foil.

prev next
What are the characteristics?

What are the characteristics?

It is tested under extreme conditions in respect of water absorption, mechanical properties, corrosion resistance and emissivity.

prev next
Product Benefits:

  • Optimizes energy efficiency.
  • Improves insulation with no thermal breaks.
  • 20-year product warranty.
  • CodeMark certified.
ANZ Centre Christchurch

ANZ Centre Christchurch

“The roof needed a specific system that would fit within new Christchurch city rebuild requirements.”

Read project

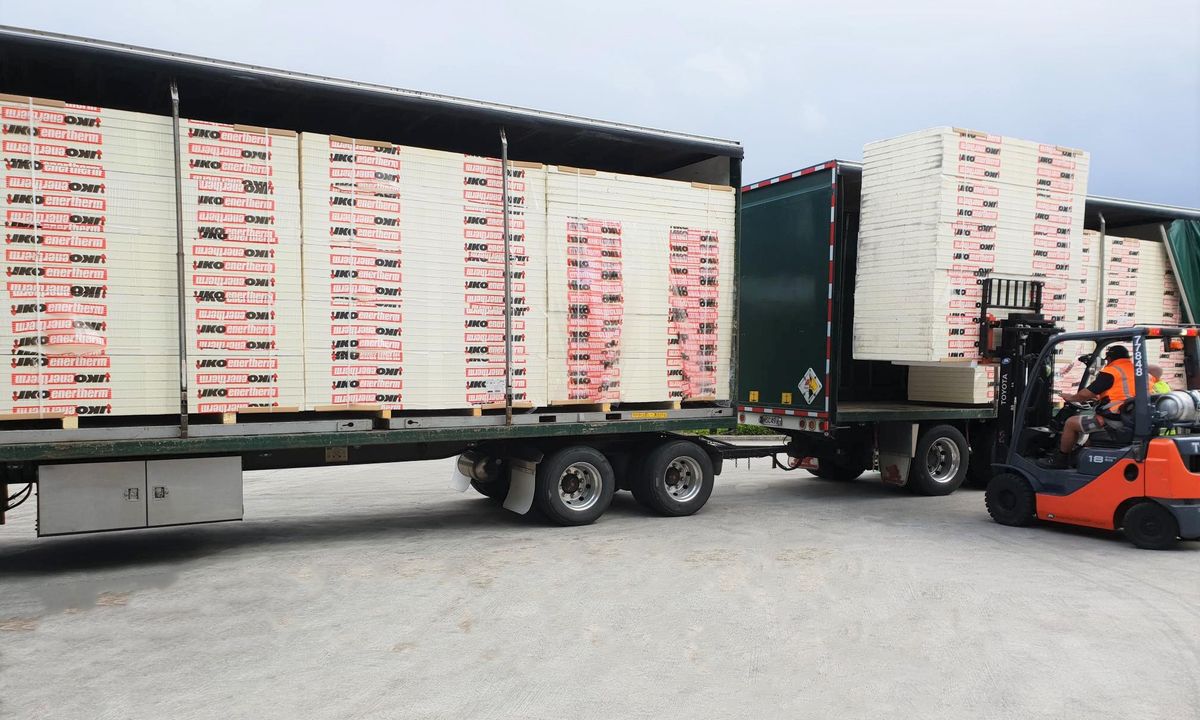

Truck being loaded up to deliver Enertherm boards

Truck being loaded up to deliver Enertherm boards

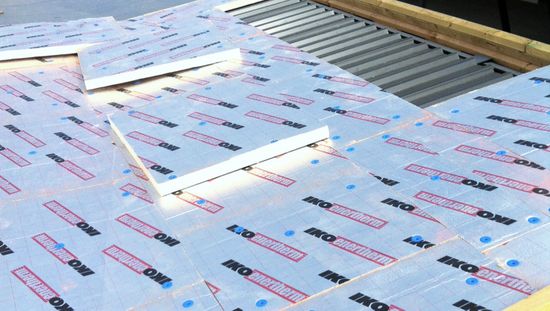

Enertherm roof on Metal Tray

Enertherm roof on Metal Tray

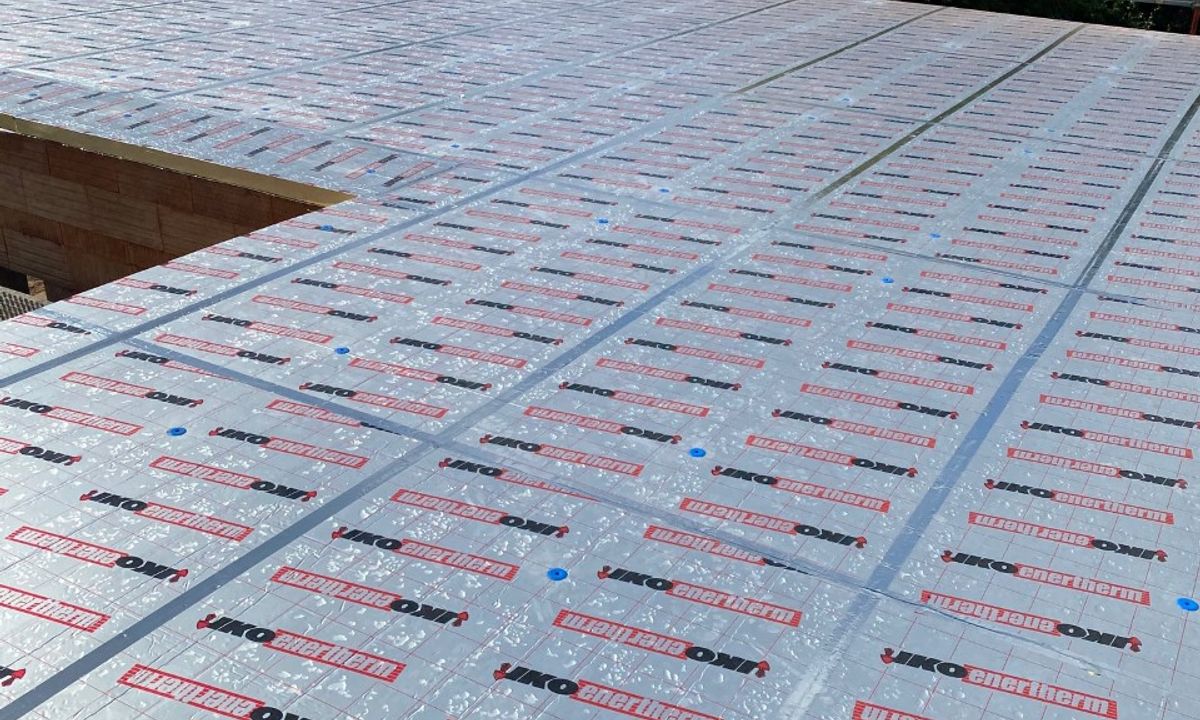

Enertherm boards with IKO fastners

Enertherm boards with IKO fastners

Looking for Specs and CAD Details?

Find the perfect solution for your project here:

Roof
Roof

Choose a bulletproof, double layer system or a sleek single layer TPO system.

Deck
Deck

Create a floating deck using tiles or timber on a new or over an existing substrate.

Tanking
Tanking

Robust waterproofing of basement walls, foundations and under the floor slab.

What is the finished look you desire?

Review Details

Supply details

Review details

Contact Nuralite

Please contact us to discuss this project.

Our technical team are available on:

0800 NURALITE (0800 687 254)

Thermal Capability Table (R-Value)

The Nuratherm ALU PIR has a thermal conduction coefficient of 0.022 W/(m.K)

ALU (1,200 x 1,000mm) 70mm 80mm 100mm
R Value 3.15 3.6 4.5

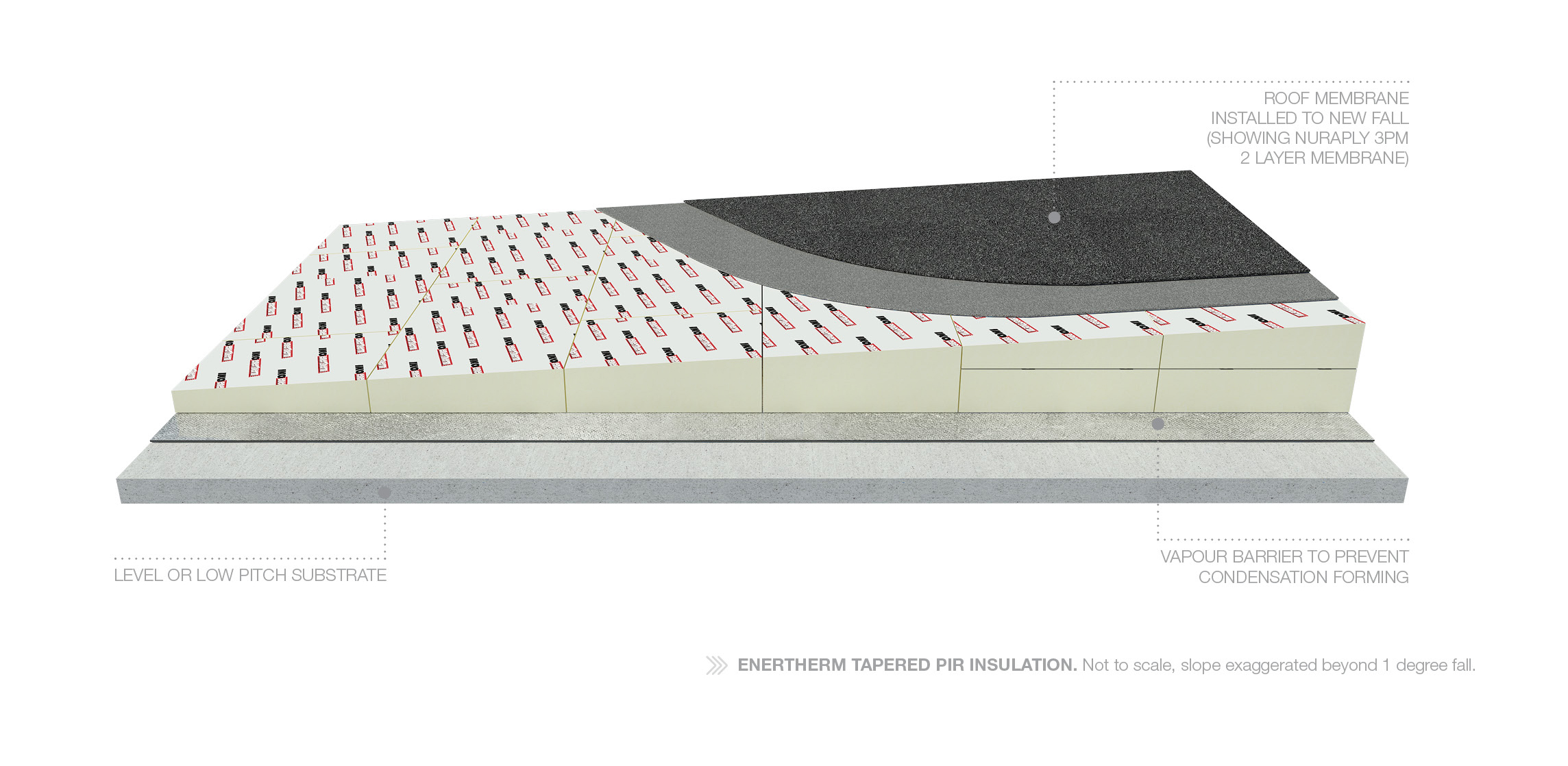

ALU Tapered (1,200 x 1,000mm) Slope 1/60 = 1°
Thickness (mm) 40 - 60mm 60 - 80mm 80 - 100mm 100 - 120mm
Avg R Value 2.25 3.15 4.05 4.95
