Installed as two complete waterproofing layers for redundancy, the completed system is commonly called “bulletproof”. With a CodeMark certificate for added confidence, designers get maximum flexibility as it may be installed at 1 degree.
What is Nuraply 3PM?

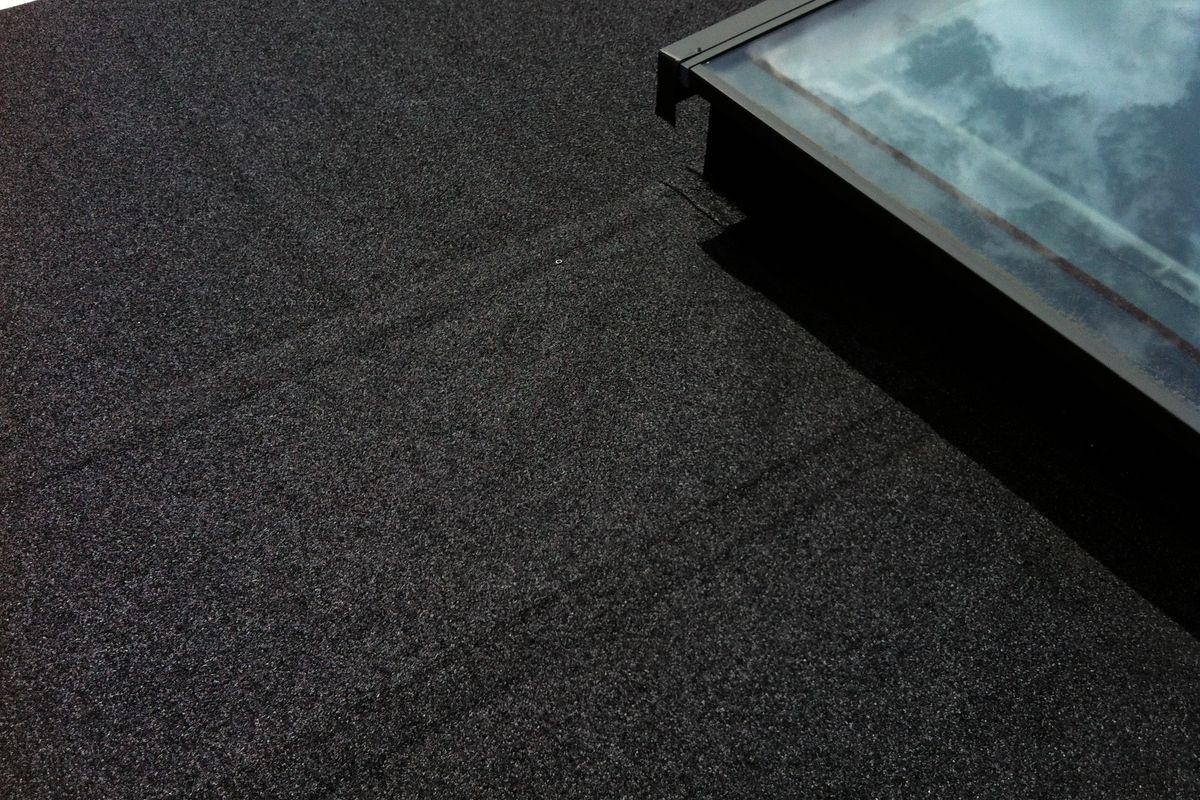

Installed as two complete waterproofing layers for redundancy the completed system is commonly called “bulletproof”. It is finished with granules of slate that give it an attractive, natural appearance. Nuraply 3PM system is a tough, reinforced, bituminous waterproofing membrane suitable for light maintenance foot traffic.
prev next

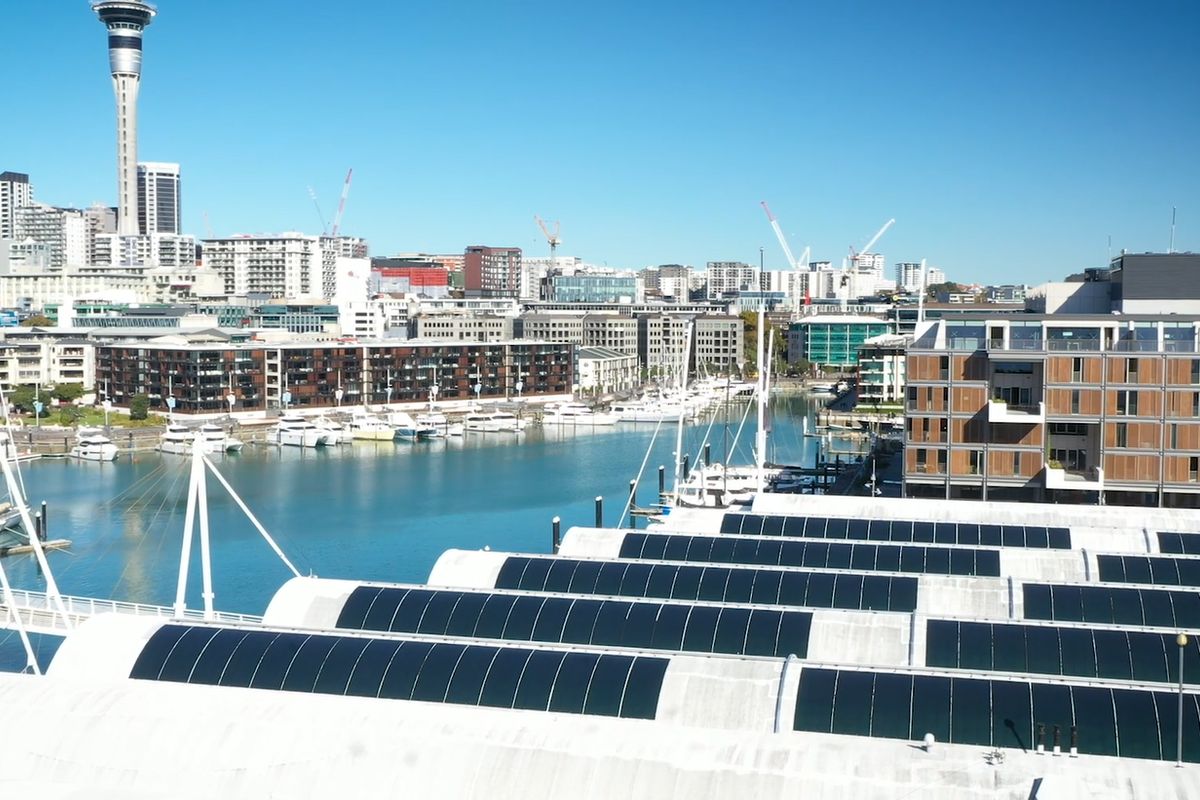

What is an energy roof?
A roof that is used to generate energy is referred to as an ‘energy roof’. Flat roofs are ideal for the installation of PV solar panels, wind turbines and solar collectors, among other things. It is a smart way of using the surface area of your roof to reduce your energy costs, and it is also good for the environment. Particularly suited to urban commercial roofs.
prev next
Why should you use a white roof?
White roofs are considered 'cooler' roofs as they optimise the performance of the thermal roof insulation, as well as having a cooling and reflecting effect that improves the efficiency of solar panels. White roofs are finished with a white granulate and titanium dioxide layer.
prev next
How is it installed?
Nuraply 3PM is used for waterproofing flat roofs or decks protected with timber or tiles. Nuraply 3PM is installed as the capsheet in a two layer membrane system. The basesheet is usually 3PB but use 3PV as a base sheet for concrete or roof decks where excessive moisture or moisture vapour occurs.
prev next
Products Benefits
- Bulletproof, low maintenance waterproofing.
- 20-year product warranty.
- CodeMark ensures certainty with building consents.
- 1o guarantee allows design flexibility.
.jpg)

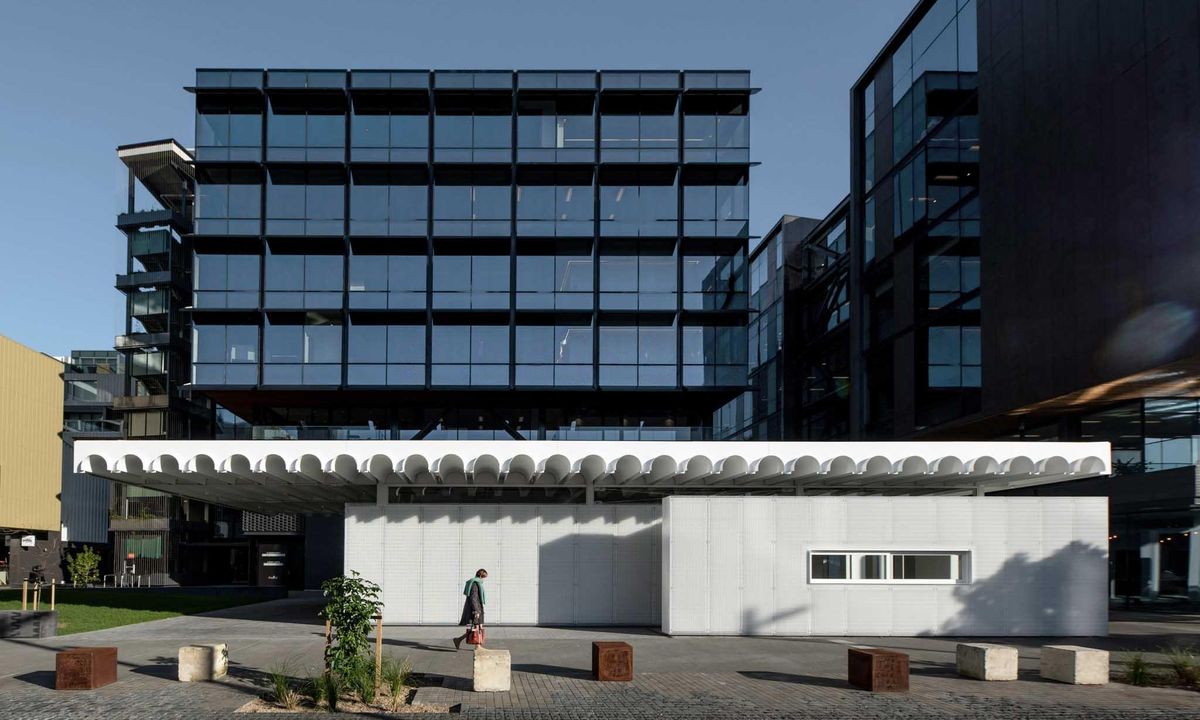

10 Madden St
Warren and Mahoney

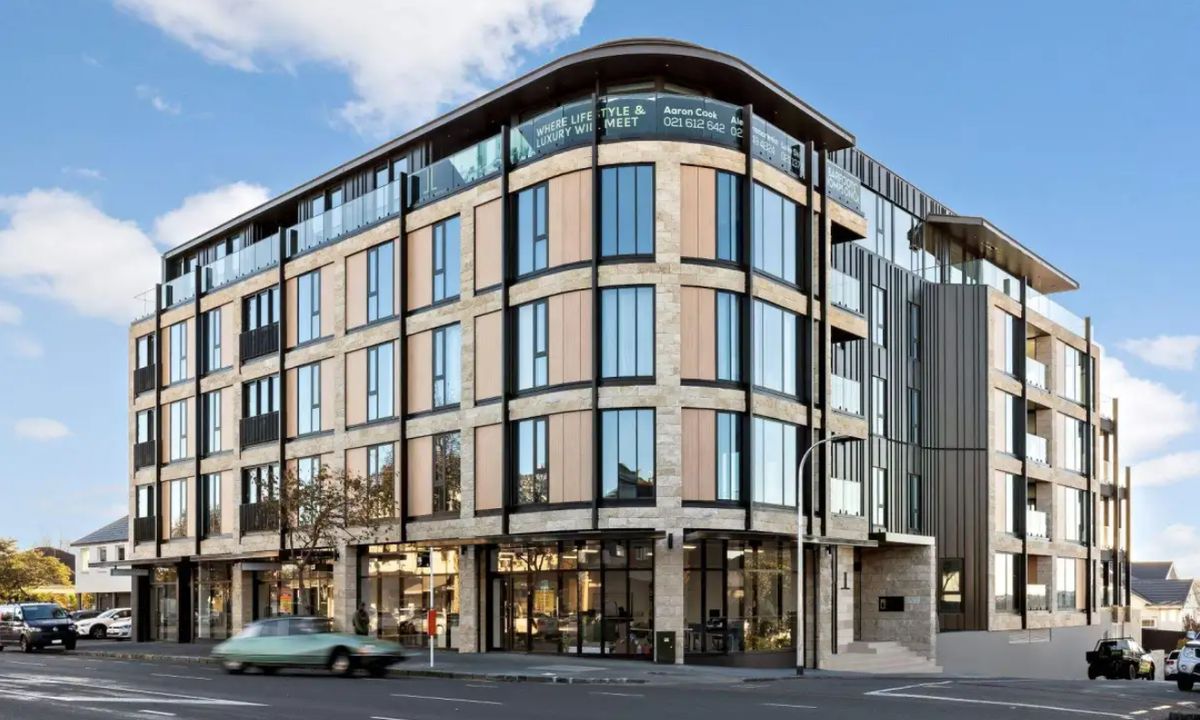

Jervois & Lawrence Apartments
Leuschke Group Architects
.jpg)

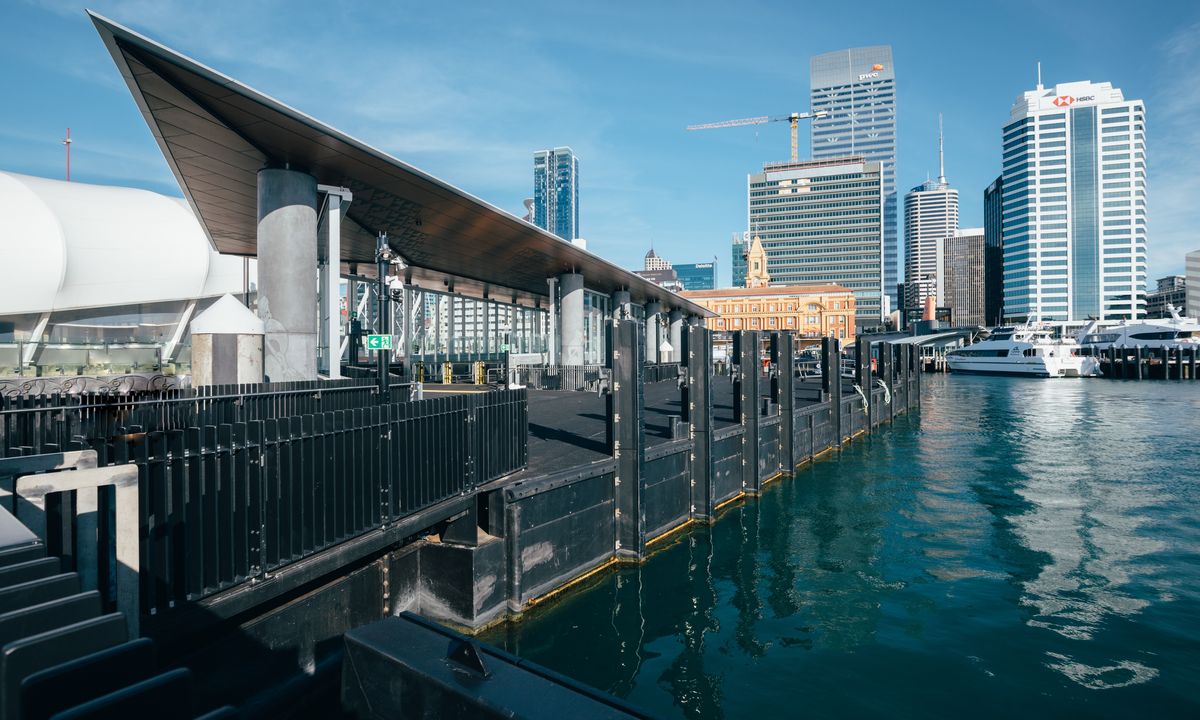

Downtown Ferry Terminal - Te Ngau o Horotiu
Isthmus

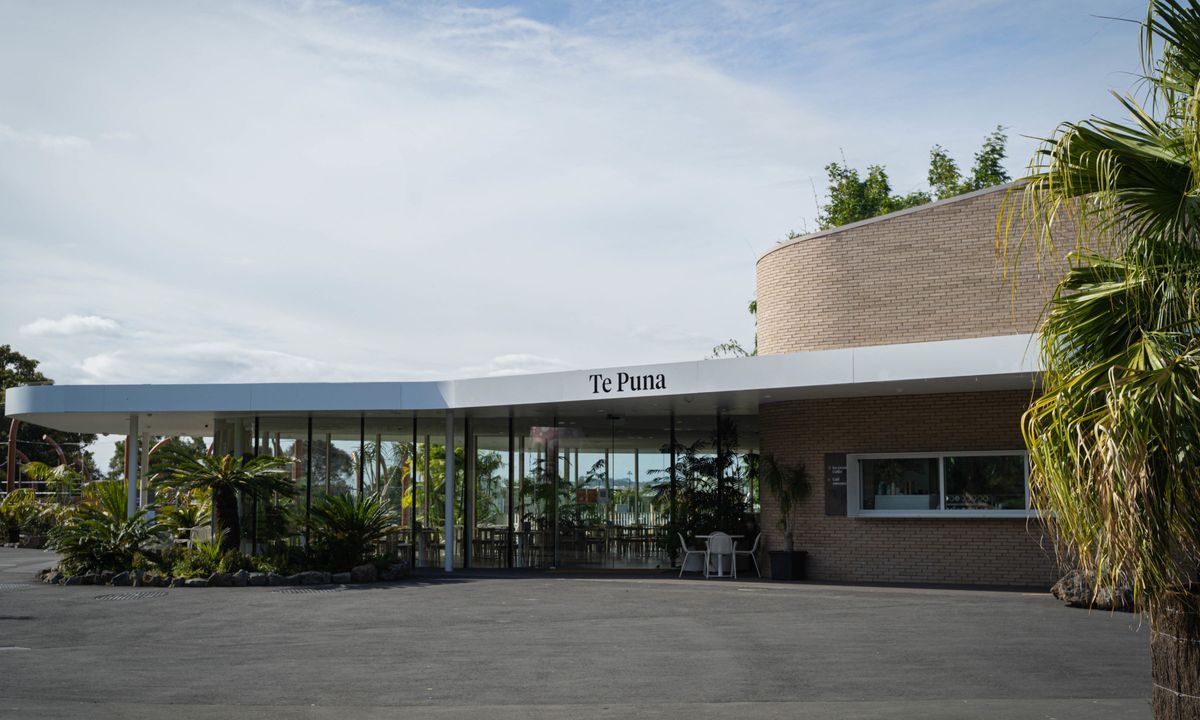

Auckland Zoo Te Puna Cafe
Stevens Lawson Architects
Catalina Bay
Cheshire Architects
Ellen Melville Centre
Stevens Lawson Architects
.jpg)

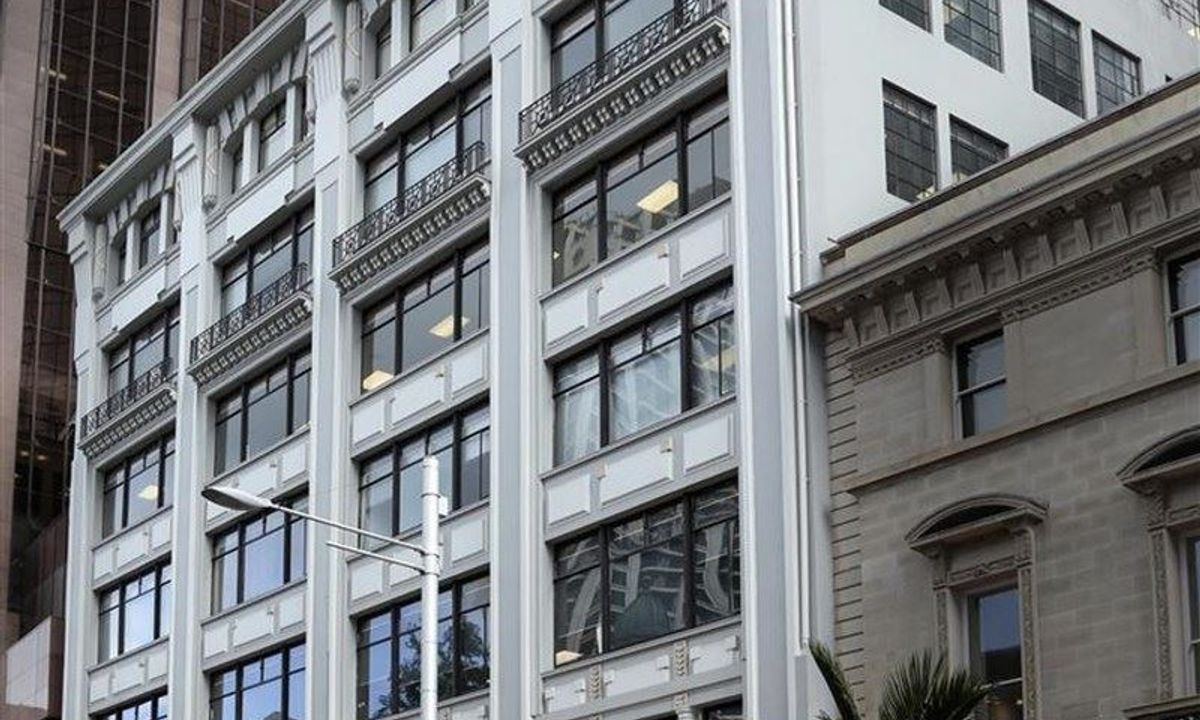

131 Queen Street
Ravenscar House
Patterson Architects
National Library
Warren & Mahoney
.jpg)
Otago Settlers Museum
Baker Garden Architects
Supreme Court
Te Hononga Hundertwasser Memorial Park
Avail Pacific

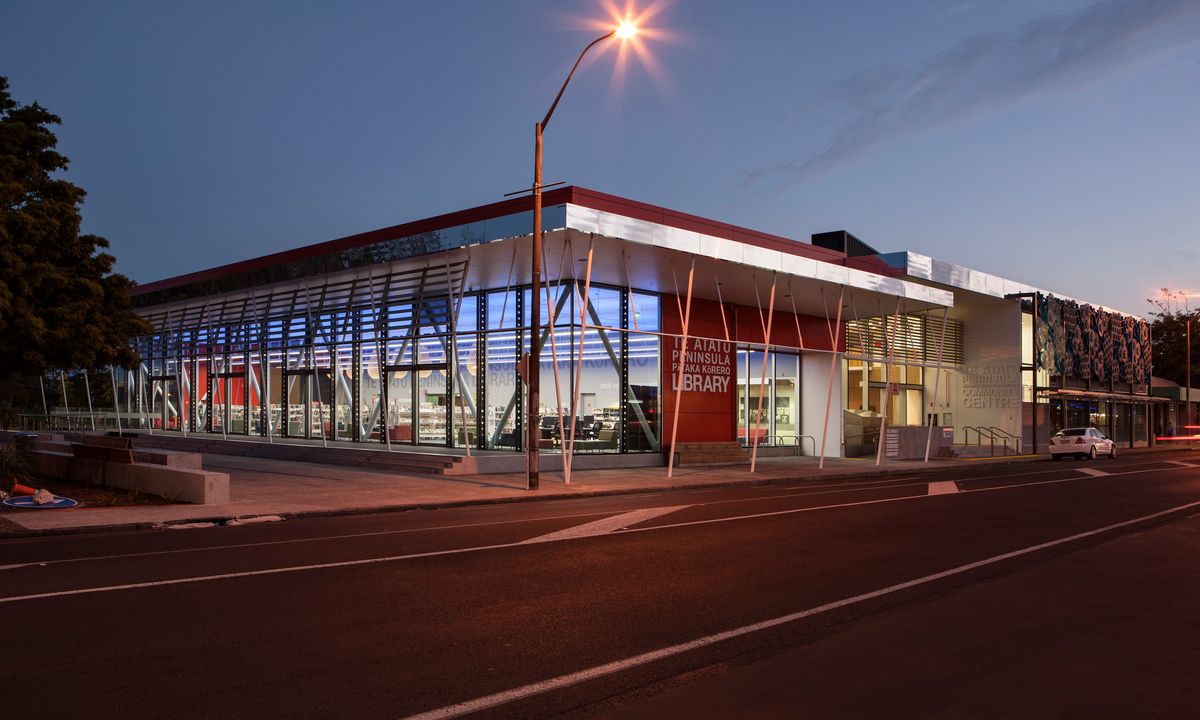

Te Atatu Library
Looking for Specifications and CAD Details?
Find the perfect solution for your project here:
Roof
Choose a bulletproof, double layer system or a sleek single layer TPO system.
Deck
Create a floating deck using tiles or timber on a new or over an existing substrate.
.JPG)
Tanking
Robust waterproofing of basement walls, foundations and under the floor slab.
Roof Renewal
Renew and improve your existing membrane or metal roof.
What is the finished look you desire?
Review Details
Add your email address below to access details.
Supply details
Please complete your details to access downloads.
Review details
Access confirmed
Would you like specs for anything else?
Roof
Choose a bulletproof, double layer system or a sleek single layer TPO system.
Deck
Create a floating deck using tiles or timber on a new or over an existing substrate.
Tanking
Robust waterproofing of basement walls, foundations and under the floor slab.
Roof Renewal
Renew and improve your existing membrane or metal roof.
Contact Nuralite
Please contact us to discuss this project.
Our technical team are available on:
0800 NURALITE (0800 687 254)
Membrane Fall/ Slope Table
| Substrate | Plywood | Concrete | Existing Substrates | Concrete with Tapered Boards or Flat Enertherm (Nuratherm) | Plywood with Enertherm (Nuratherm) |
NPM900 or approved metal tray (B) with Enertherm (Nuratherm) |
|---|---|---|---|---|---|---|
| Minimum Finished (Constructed) Falls | 1:80 | 1:80 | 1:80 | 1:80 | 1:80 | 1:80 |
| Recommended Design Fall (excluding gutters) (A) | 1:40 | 1:60 | 1:60 Confirm no ponding areas | 1:60 | 1:40 | 1:40 |
| Gutters | 1:100 | 1:100 | 1:100 | 1:100* | 1:100 | 1:100 |
| Substrate Comments | Using 17mm (roofs) or 21mm (decks) plywood, rafters at 600 centers, nogs at 600 centers. | Create required slope with a screed. Wait for concrete and screed to cure. | Confirm substrate is sound | *Minimum fall available using tapered boards is 1:60. Nuralite can assist with tapered board layout. | Create required slope in the plywood | Create required slope in the NPM900 |

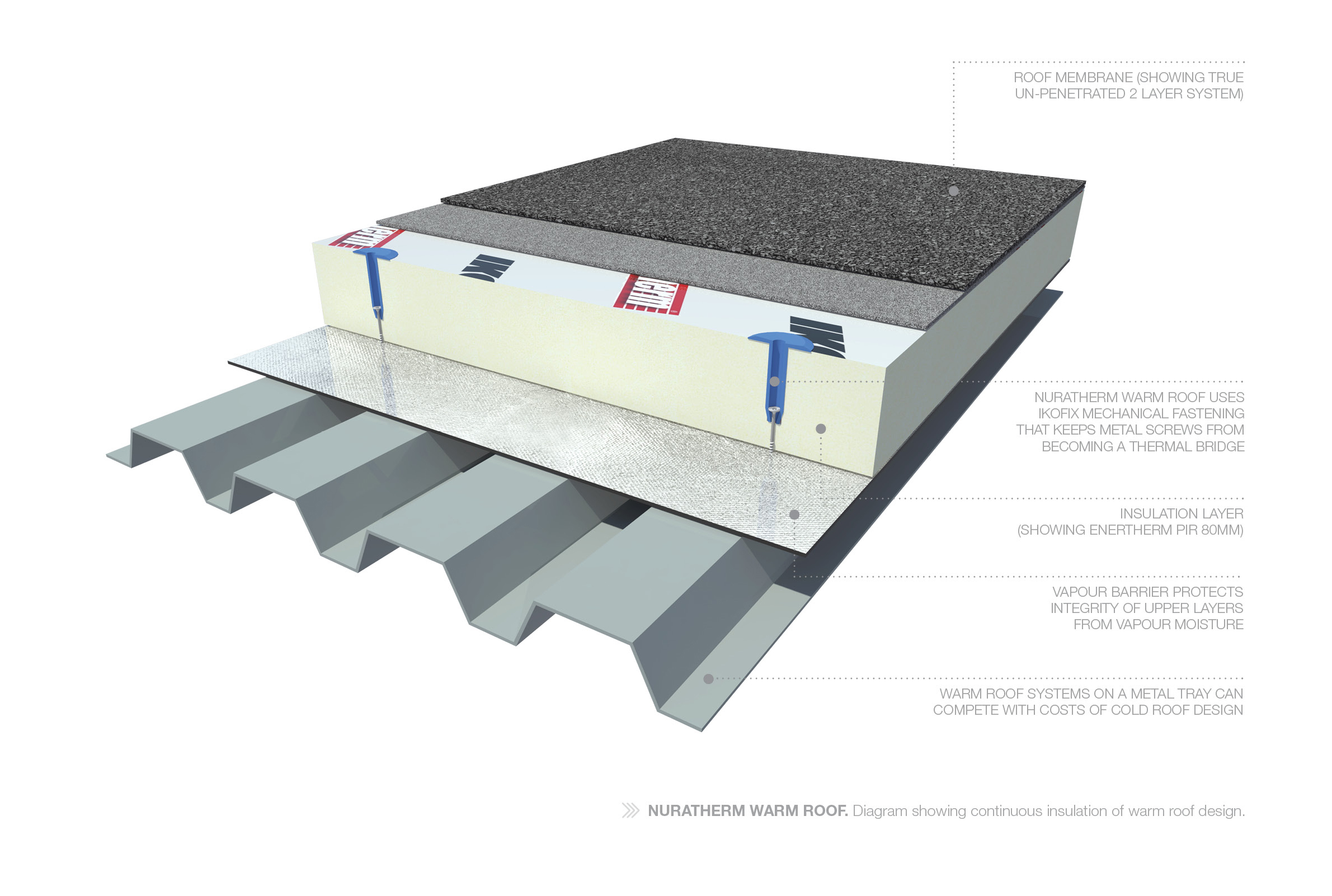

Nuratherm Warm Roof
