What is our Carpark membrane system?

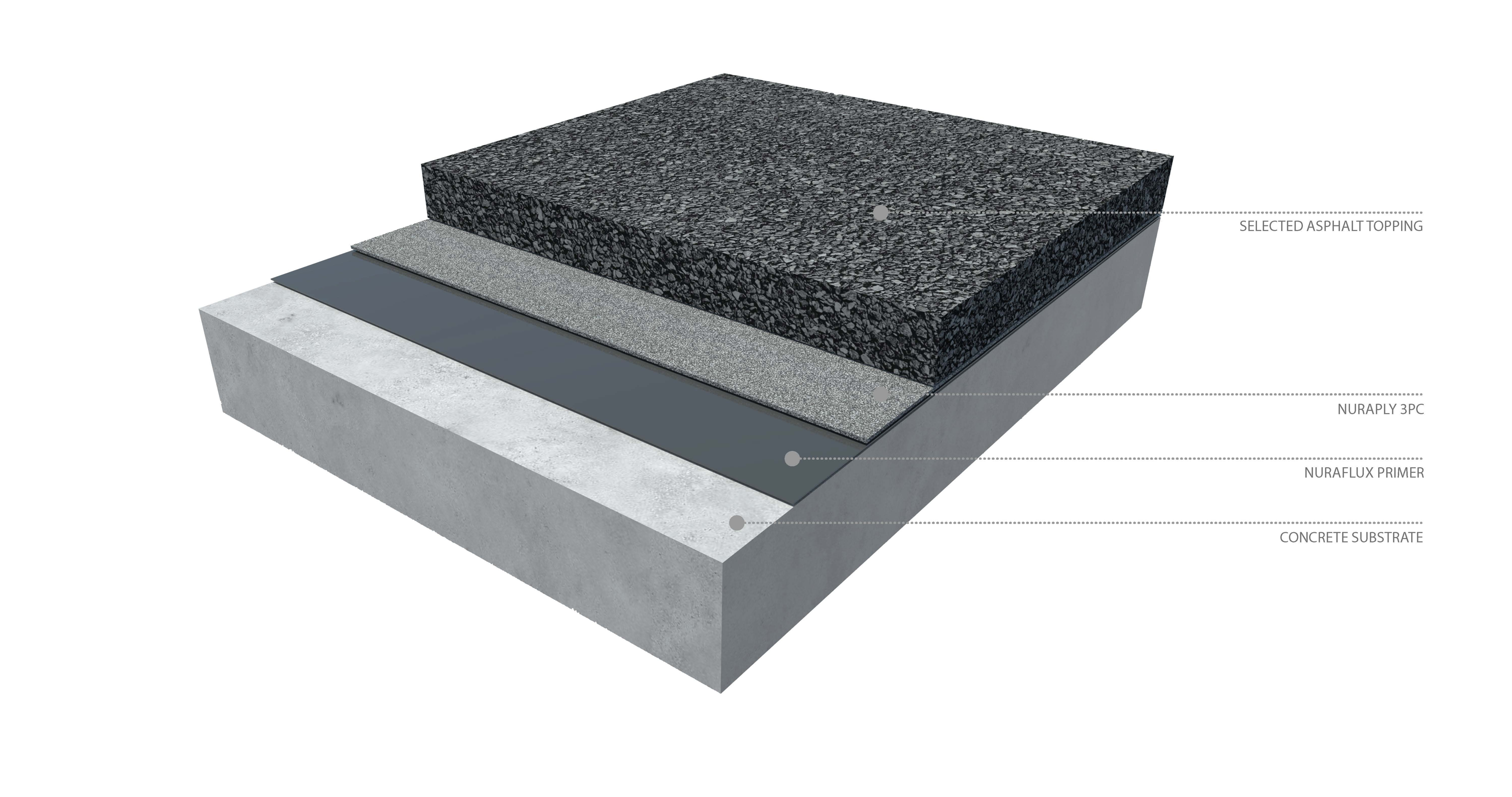

A 5mm thick sheet of APP modified bitumen. Heat fused onto the substrate with heat welded lap joints and talc upper surface. Consists of a 280 g/m² impregnated carrier with combination of polyester and glassfleece covered at the bottom side with flexible polymer bitumen.prev next
How is the 3PC finished?
The finish of the top surface of this membrane, talcum, admits direct application of hotmix asphalt at a temperature of max. 160°C-200°C. The positioning of the carrier close to the upper surface of the membrane ensures a thorough adhesion between membrane and substrate.prev next
- Robust and durable system solution.
- A complete 20-year product warranty.
- CodeMark ensures certainty with building consents.
Nuraply 3PC Costo Carpark
Installed by the Sansom Team
15,200m2 of Nuraply 3PC
Carpark being primed for Nuraply 3PC
Membrane ready to be laid down
Asphalt being rolled on top of Nuraply 3PC
Looking for Specifications and CAD Details?
Find the perfect solution for your project here:
Choose a bulletproof, double layer system or a sleek single layer TPO system.
Create a floating deck using tiles or timber on a new or over an existing substrate.
Robust waterproofing of basement walls, foundations and under the floor slab.
Renew and improve your existing membrane or metal roof.
What is the finished look you desire?
Add your email address below to access details.
Please complete your details to access downloads.
Please contact us to discuss this project.
Our technical team are available on:
0800 NURALITE (0800 687 254)
New Zealand’s most speciﬁed multiply system, Nuraply 3PM is a robust, reinforced bituminous waterprooﬁng sheet. With a CodeMark certificate for added confidence, it may be installed at 1 degree - the lowest slope in New Zealand.

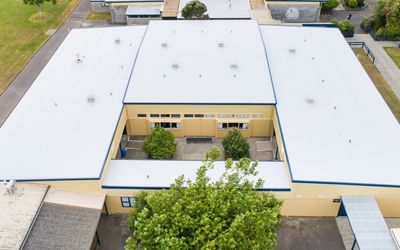

Our single layer TPO membrane offering heat welded seam integrity, energy savings and an exceptional finish.
Our tanking products work together to waterproof construction features such as the foundations, basements and underslab of a building.
Green Roofs or living roofs are an innovative and celebrated feature of sustainable design. The Nuraply 3PG membrane provides the waterproofing layer in any green roof design.
Producing a watertight surface that can handle the demands vehicular traffic and building movement isn't difficult with our carpark membrane.

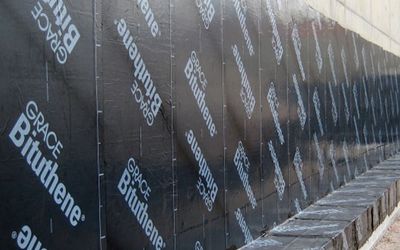

Bituthene / Preprufe
Pre-applied damp-proof waterproofing membranes for use in the external tanking of below ground structures.

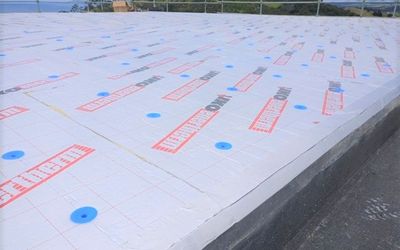

Enertherm PIR Insulation
A rigid polyisocyanurate foam core, clad on both sides with a multi-layer gastight aluminium foil, perfect for insulating a structure.
Quality Mineral wool insulation that provides improved acoustic and fire performance, made from a combination of rock and steel waste.
Whether requiring a pedestal for a membrane deck or pile for a deck over existing stable, erosion proof ground, our decking pedestals provide the ultimate solution.
Nuralite Fixing Plate
The Nuralite Fixing Plate provides a discrete and versatile structural fixing point that is factory-bonded to the waterproofing membrane. For warm roofs it upholds the integrity of the insulation without cold bridges
